tectonicr

tectonicr is a free and open-source R package for modeling and analyzing the direction of the maximum horizontal stress (SHmax) based on the empirical link between the direction of intraplate stress and the direction of the relative motion of neighboring plates (Wdowinski, 1998; Stephan et al., 2023). The following methods are available:

Prerequisites

You must have R installed on your system (see http://r-project.org). To install tectonicr from CRAN, type the following code at the R command line prompt:

install.packages("tectonicr")

Installation

The most recent development version of tectonicr is available from Github and can be installed on your system as follows:

# install.packages("remotes") # install if needed
remotes::install_github('tobiste/tectonicr')
library('tectonicr')

Using the stress measurements from the San Andreas Fault - Gulf of California example, a quick analysis and test against the right-lateral transform plate boundary can be achieved by:

# load example data
data(san_andreas)
data(nuvel1)
data(plates)

stress_analysis(
san_andreas,
PoR = equivalent_rotation(nuvel1, "na", "pa"),
type = "right",
pb = subset(plates, pair == "na-pa")
)

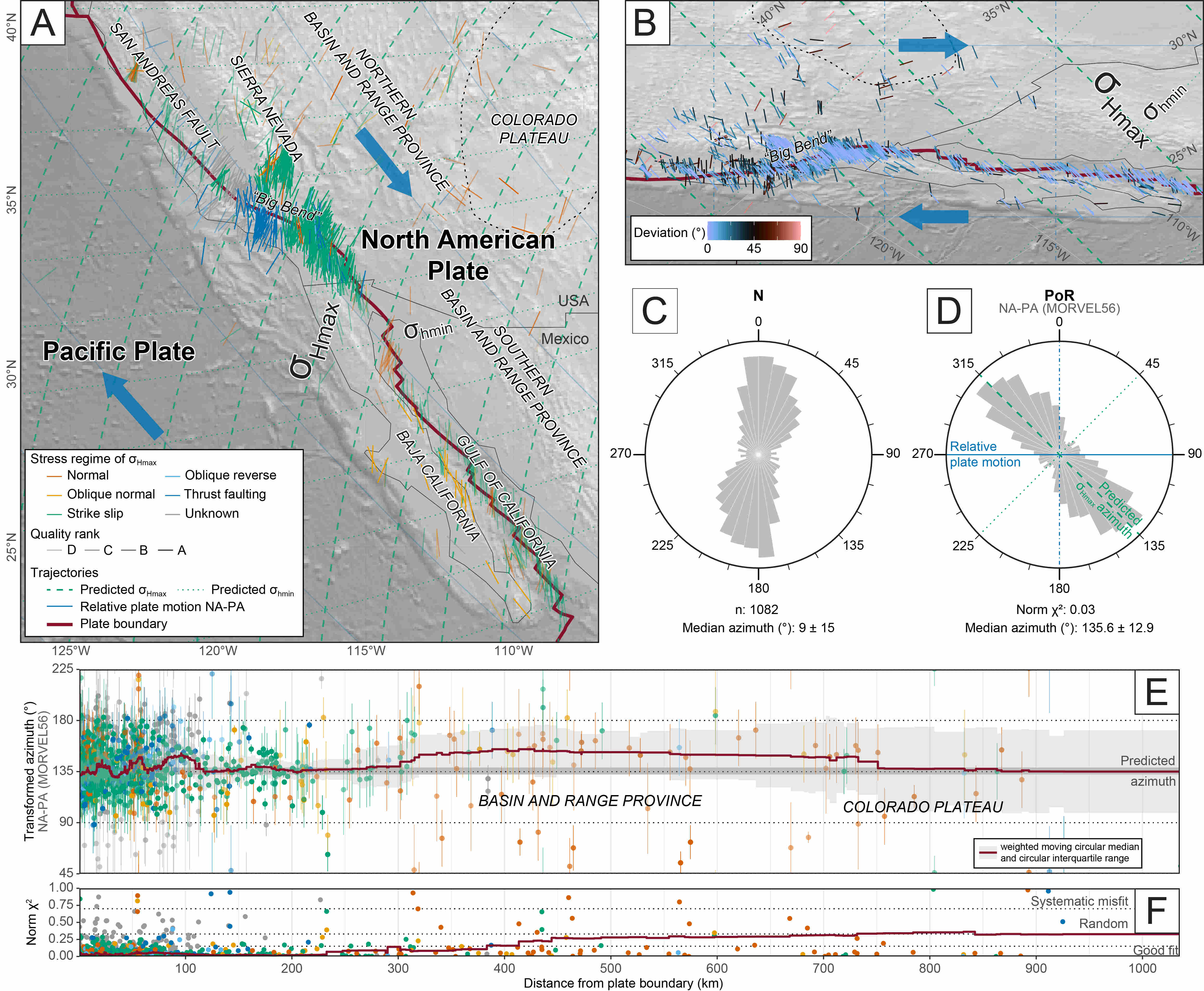

The code produces the underlying results for Fig. 7 from Stephan et al. (2023)

Documentation

The detailed documentation can be found at https://tobiste.github.io/tectonicr/articles/tectonicr.html

GUI

There is a graphical user interface that provides some (limited) tectonicr functionalities. No need to install, just click on the link and you can run tectonicr on your browser:

https://tobiste.shinyapps.io/tectonicr-app/

Author

Tobias Stephan (tstephan@lakeheadu.ca)

Feedback, issues, and contributions

I welcome feedback, suggestions, issues, and contributions! If you have found a bug, please file it here with minimal code to reproduce the issue.

How to cite tectonicr

When referencing this package, please cite

Stephan, T., Enkelmann, E., and Kroner, U. (2023). Analyzing the horizontal orientation of the crustal stress adjacent to plate boundaries. Scientific Reports, 13(1). DOI: 10.1038/s41598-023-42433-2.

and the package DOI: 10.32614/CRAN.package.tectonicr.
